Medium Voltage Calculations

Features Medium Voltage Calculations

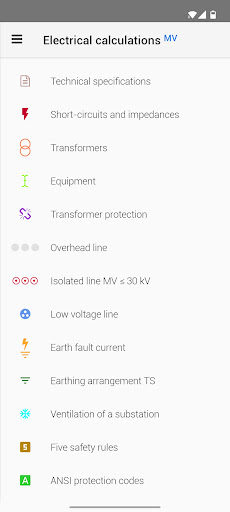

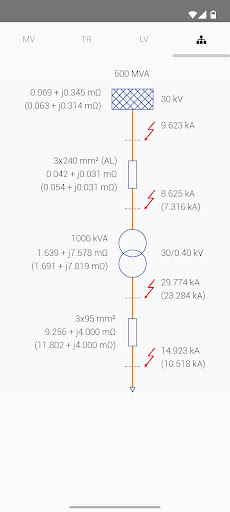

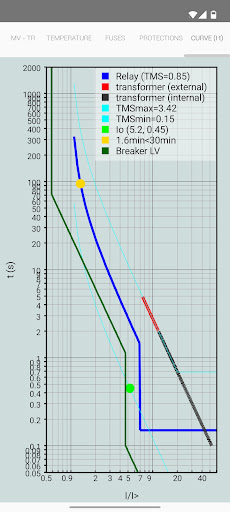

The most complete tool to support the calculation of high voltage electrical installations.Free sections:- Determination of the characteristics of the equipment: rated voltage (Ur), withstand at industrial frequency (Ud), withstand type of lightning (Up), short-term current (Ik)- Sizing of low and medium voltage insulated cables (≤ 30 kV)- Calculation criteria for admissible current, voltage drop, short circuit and protection, consideration of different factors for reducing the admissible current: temperature, thermal resistivity of the ground, grouping, sun exposure, etc.- Multiple installation methods: tray, buried, under pipe, in the air ...- Visualization of protection relay trip curve and MV cable admissible current- Protection with transformer limiting fuses- Earth fault current calculation (isolated neutral and earth)- PE conductor- Transformer performance and voltage drop- Primary/secondary conversions in voltage and current transformers- Secondary of a transformer acoording to switch position- Calculation of the transformation center ventilation needs- Five safety rules- Consult ANSI codes electrical protections- Tray sizing- Representation of 1 IEC curve- Parameter configuration Voltages, frequency, conductivity of the conductor material, temperature MV specific: list type, cable bundle (flat / staggered) Regulation of LV protections- Possibility of sharing resultsPurchases In-App:- Calculation of short circuits and impedances with the maximum and minimum values, type diagram with the following configuration: Network, Transformer, MV line, LV line- Selection of voltage and current transformers (protection and measurement), capacitor bank of the transformer, calculation of the number of insulators- Protection and adjustment of the transformer overcurrent relay, selectivity with low voltage switch (Ir, Isd, Ii), graph of the actuation curves and identification of characteristic points- Calculation of medium voltage line (short line model, single circuit) with conductors: AL1 / ST1A (LA), AL1 / S20SA (LARL), AL3 / ST1A (DA), AL3 (D)- Dimensioning and checking of protective and service grounding installation, system configuration, calculation of Howe parameters, step and contact voltages, distance between grounding, single grounding, additional safety measures and results checking- Representation of up to 3 curves with different voltage levels- Removal of ads with any purchase madeIN NO CASE SHALL THE AUTHOR BE LIABLE FOR ANY DIRECT OR INDIRECT DAMAGES AS A RESULT OF THE CORRECT OR INCORRECT USE OF THE APPLICATIONAttribution icon:Icons made by smalllikeart from www.flaticon.com
